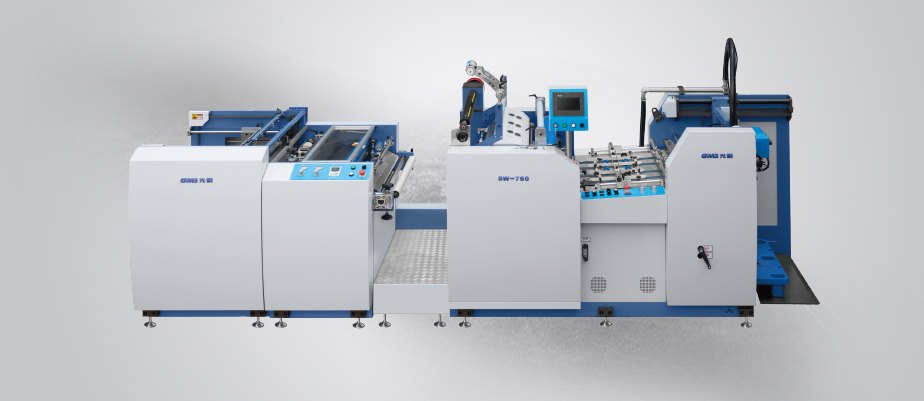

Fully Automatic Laminator

SW-560/660/760

Fully Automatic Laminator

加热时间缩短到90秒, 温差精确到±1℃

Overview video

Configuration

  • Auto FeederThis machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
  • Electromagnetic HeaterEquipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
  • Anti-curvature DeviceThe machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.
  • Automatic StackerAutomatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets
  • Suction DeviceSuction device guarantees stablity and smooth of paper sending.
  • Hot stamping rewinder for pre-printing(optional)It applys for rewinding waste film of paper hot stamping with seperation design. It’s optional.

Technical Parameters

SW-560/660/760
最大纸张幅面
最小纸张幅面
Max Paper Size
Min Paper Size
560x820mm
210x300mm
660x820mm
210x300mm
760x820mm
210x300mm
适用纸厚 Paper Thickness 90-600 g/m2 90-600 g/m2 90-600 g/m2
覆膜速度 Laminating Speed 0-60m/min 0-60 m/min 0-60 m/min
电源电压 voltage 380V 380V 380V
覆膜温度 Laminating temperature 80-110℃ 80-110℃ 80-110℃
总功率 Pre-Gross Power 20/12kw 20/12kw 20/12kw
机器重量 Total Weight 2600kg 2800kg 3000kg
外型尺寸 Overall Dimensions 4600x1350x1600 mm 4600x1450x1700mm 4600x1550x1700mm
视频暂无
High-speed Fully Automatic Semi-automatic Semi-automatic Manual
