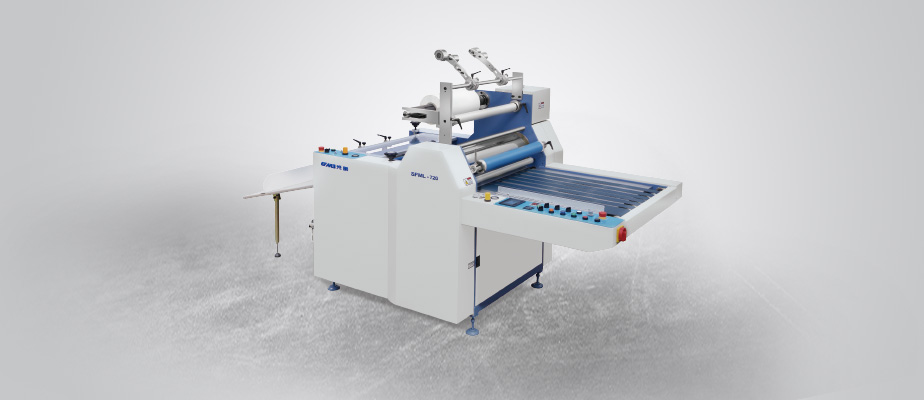

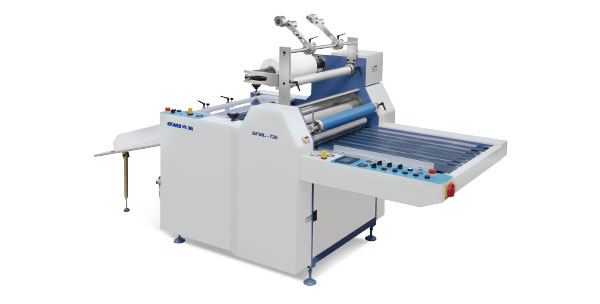

Semi-auto Laminator

SFML-720/920

Semi-auto Laminator

Overview video

Configuration

1. Operates smoothly by using frequency conversion.
2. SCHNEIDER PLC system ensures automatic paper separation,
breakdown alert for self-protection.
3. The machine has increased precision with built-in chrome plated oil
heating system and temperature control.
4. An airshaft allows for accuracy when loading, unloading and
positioning laminating film roll.


Technical Parameters

SFML-720/920
Model SFML-720 SFML-920
Max Paper Size
Paper Thickness
680mm
100-500g/m2
880mm
100-500/m2
Laminating Speed
Gross Power
0-25m/min
13kw
0-25m/min
15kw
Total Weight
Overall Dimensions
1000kg
3100x1450x1600mm
1200kg
3100x1650x1600mm
