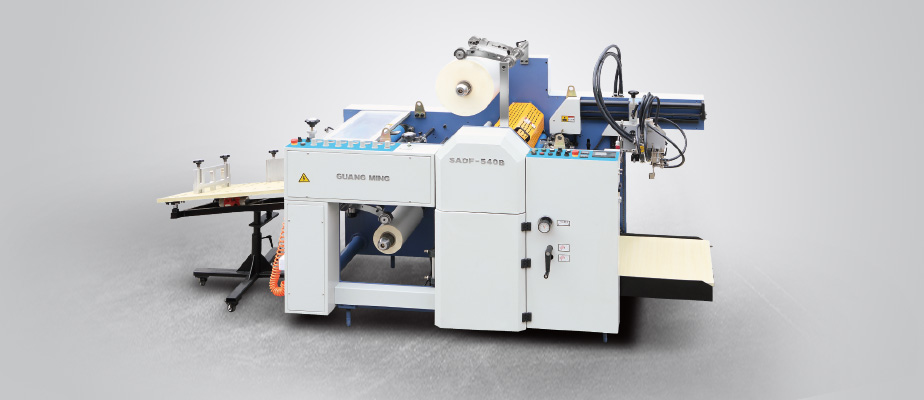

Automatic Doubel Side Laminating Machine

SADF-540B

Automatic Doubel Side Laminating Machine

To suit both single side and double
side lamination

Model SADF540B is one of our fully automatic double side laminators newly developed upon market needs. It is a processing technology which targets in laminating small size paper with pre-glued film after heated、pressured finally realize the paper and film laminated together .The most attractive features of the machine are compact structure and humanized design. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator. The machine realizes automated operation, and suits pre-glued film single side and double side paper lamination.

Overview video

Configuration



Protection device
When paper lack or break, machine stop automatically for self-protection


Schneider programming system
Equipped servo motor,Schneider inverter and Omron electrics, speed control
convenien the machine run smoothly and no noise.



Intelligent constant temperature roller
On the heating roller and the lower heating roller equipped with special heater for heating, temperature control individually.Temperature performance is excellent and make sure double-side laminating temperature.


Pneumatic separator system
Pneumatic separator system automatically
separate paper



Automatic pneumatic system
Automatic pneumatic system to provide stable pressure laminating machine.
Pressure can be adjusted automatically according to need

Delivery
After separating the paper received by jogger or automatic stacker(optional)

Optional

540 Automatic Stacker(Optional)

Technical Parameters

SADF-540B
Max Paper Size
Min Paper Size
540x780mm
210x290mm
Paper Thickness
Max Laminating Speed
105-500g/m2
0-30m/min
Gross Power
Total Weight
18kw
1500kg
Overall Dimensions
3200x1250x1650mm
