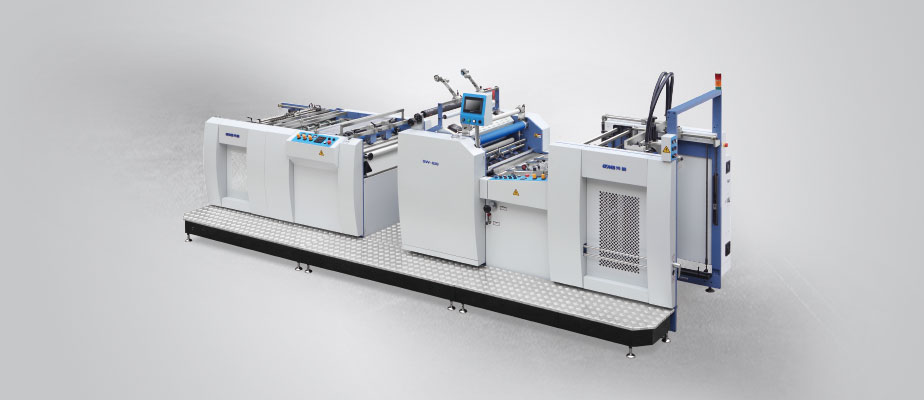

Fully Automatic Laminator

SW-820

Fully Automatic Laminator

Instant Electromagnetic Heater
heat up time shorten to 90 seconds,
accurate temperature control:±1℃

Overview video

Configuration

  • Auto FeederThis machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
  • Side Lay RegulatorThe Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
  • Electromagnetic HeaterEquipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
  • Human-computer interfaceA user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.
  • Separation systemPneumatic separation system to separate the paper stably and quickly.
  • Corrugrated DeliveryA corrugatted delivery system collects paper easily.
  • Anti-curvature DeviceThe machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.
  • Automatic StackerAutomatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets
  • Film LoaderOperating the film loader is easy and efficient to use.

Technical Parameters

SW-820
Max Paper Size
Min Paper Size
820x1050 mm
300x300 mm
Paper Thickness 100-500 g/m2
Laminating Speed 0-65 m/min
Gross Power 21 kw
Weight
Overall Dimensions
4000 kg
6200x2000x1900 mm
Pre-stacker
1850mm
