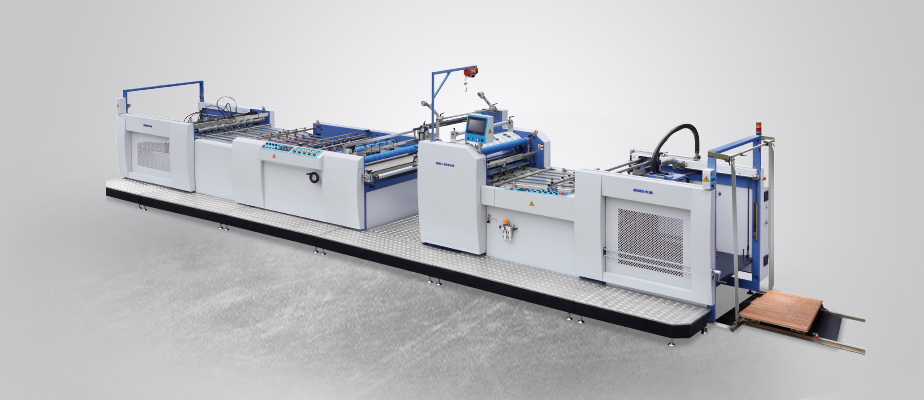

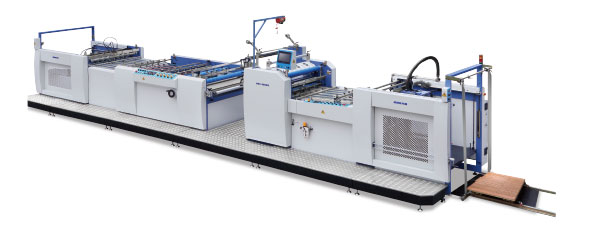

Fully Automatic High-speed Laminator

SW-1050G

Fully Automatic High-speed Laminator

Instant Electromagnetic Heater
heat up time shorten to 90 seconds,
accurate temperature control:±1℃
Max. speed 120 meter/min
PET fim 75 meter/min
Maximize output and profits for user.

Overview video

Highlights

Configuration

  • Auto FeederThis machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
  • Side Lay RegulatorThe Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.

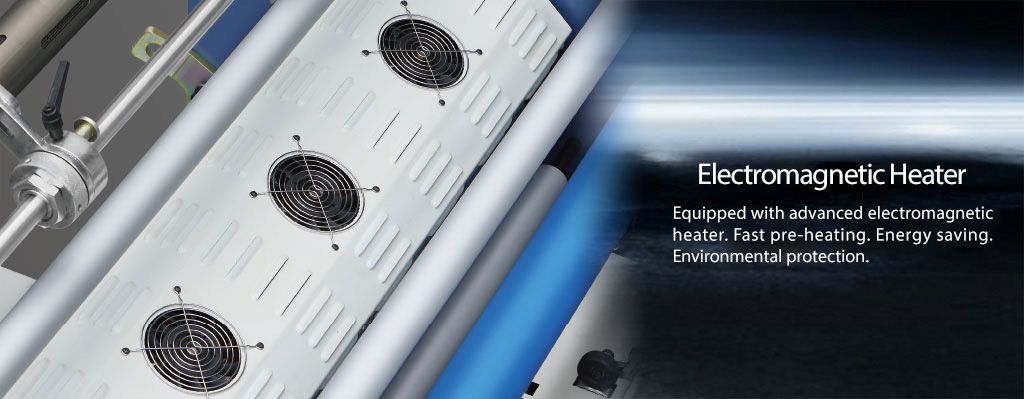

  • Electromagnetic HeaterEquipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
  • Human-computer interfaceA user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.
  • High Speed Separating systemThis machine is equipped with a pneumatic separating system, pneumatic perforating device and photoelectrical detector to rapidly separate the paper according .to the paper size.
  • Double Film ShaftSaving time of film loading and uploading,improving efficiency
  • Corrugrated DeliveryA corrugatted delivery system collects paper easily.
  • Anti-curvature DeviceThe machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.
  • Automatic StackerAutomatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets

Technical Parameters

SW-1050G
Max Paper Size
Min Paper Size
1050X1200mm
350X350mm
Paper Thickness 105-500 g/m2
Laminating Speed 0-120m/min
Gross Power 25kw
Weight
Overall Dimensions
5000 kg
9550x2400x1900mm
Pre-stacker
1850mm

视频暂无
High-speed Fully Automatic Semi-automatic Semi-automatic Manual
