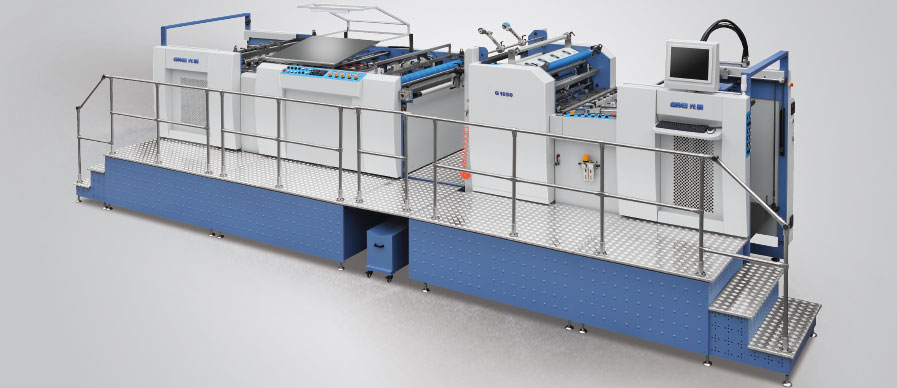

G-1050 G Series High Platform Smart Laminator

Instant Electromagnetic Heater
heat up time shorten to 90 seconds,
accurate temperature control:±1℃
Max. speed 120 meter/min
PET fim 75 meter/min
Maximize output and profits for user.

G series high platform smart laminator is one kind of high level and high smart laminating machine, having the features of date storage managment,production data programming and remote moniting etc.This series can meet different requirments of clients.

Overview video

Configuration

  • Side Lay RegulatorThe Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
  • Electromagnetic HeaterEquipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
  • Human-computer interfaceA user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.
  • Corrugrated DeliveryA corrugatted delivery system collects paper easily.
  • Automatic StackerAutomatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets
  • Anti-curve deviceEquiped with anti-curve device to avoid curvature of thin paper
  • Pre-stack Paper Feeder
  • Double Trolley Automatic Film Lifting DeviceThis device is application for film exchanging. Just loading the film at the shaft, then press the button, the film will be lifted automatically. It also has the function of position and tension adjustment.

Technical Parameters

G-1050 G Series High Platform Smart Laminator
Max Paper Size
Min Paper Size
1050X1200mm
350X350mm
Paper Thickness 105-500 g/m2
Laminating Speed 0-120m/min
Gross Power 25kw
Weight
Overall Dimensions
5000kg
9550x2400x1900mm
Pre-stacker
1850mm
