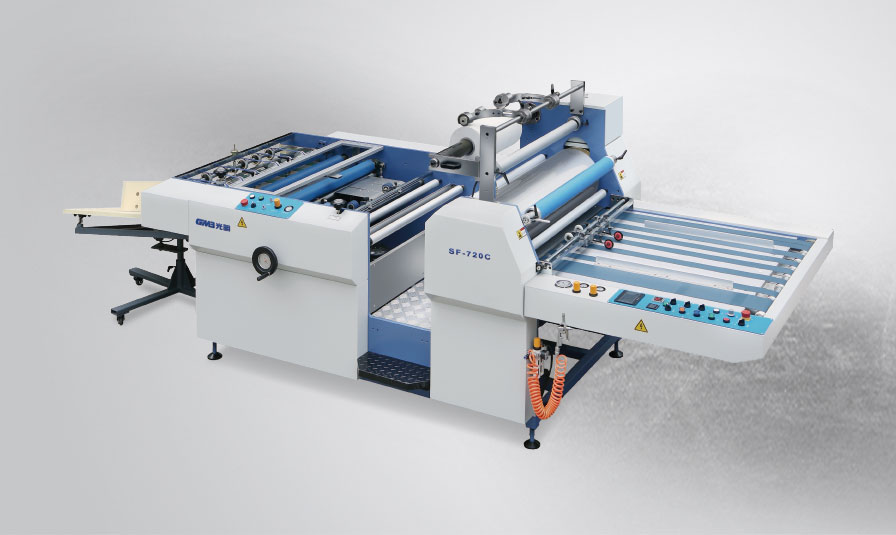

Semi-auto Laminator

SF-720C/920C/1100C

Semi-auto Laminator

Characteristics:  9 lastest design patents
High quality semi-auto laminator

1. SCHNEIDER PLC system makes the machine run stably and quietly.
2.  Φ320 size of chromed heating roller is mounted with built-in oil heating system which provides
balanced laminating temperature and owns excellent temperature persistence.
3. Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
4. Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
5. Perfected traction adjusting system makes traction adjustment more convenient and efficient.
6. Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.

Overview video

Configuration

  • paper overlap regulatorThe machine is equipped with an paper overlap regulator to feed paper easily.
  • JoggerThe jogger collects paper.
  • Fying knife and perforating system

Technical Parameters

SF-720C/920C/1100C
Model SF-720C SF-920C SF-1100C
Max Paper Size
Paper Thickness
720mm
100-500g/m2
920mm
100-500/m2
1100mm
100-500g/m2
Laminating Speed
Gross Power
0-30m/min
18kw
0-30m/min
19kw
0-30m/min
20kw
Total Weight
Overall Dimensions
1700kg
4600x1560x1500mm
1900kg
4600x1760x1500mm
2100kg
4600x1950x1500mm
